Kubota Tractor Mod: Adding a ROPS Mounted Fan

Here’s how I added a removable ROPS fan to my Kubota L3901 tractor. It’s been a big help in keeping me cooler in hot weather!

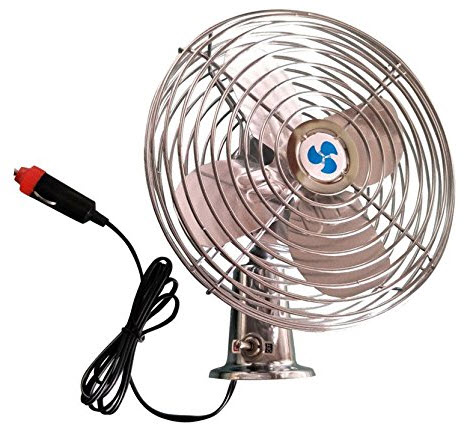

First, I wanted a 12-volt fan that was screw mountable rather than clip-on and I preferred it be metal rather than plastic.  I found this little gem below on Amazon for $17.

Unfortunately, it is no longer available.  However, there are some almost identical fans available on Amazon for prices ranging from $25 to $38.  The links to some links to them are below:

Other items:

Next comes figuring out how to mount it on the ROPS in a way that allows an easy way to put the fan on when I need it and take it off when I don’t.

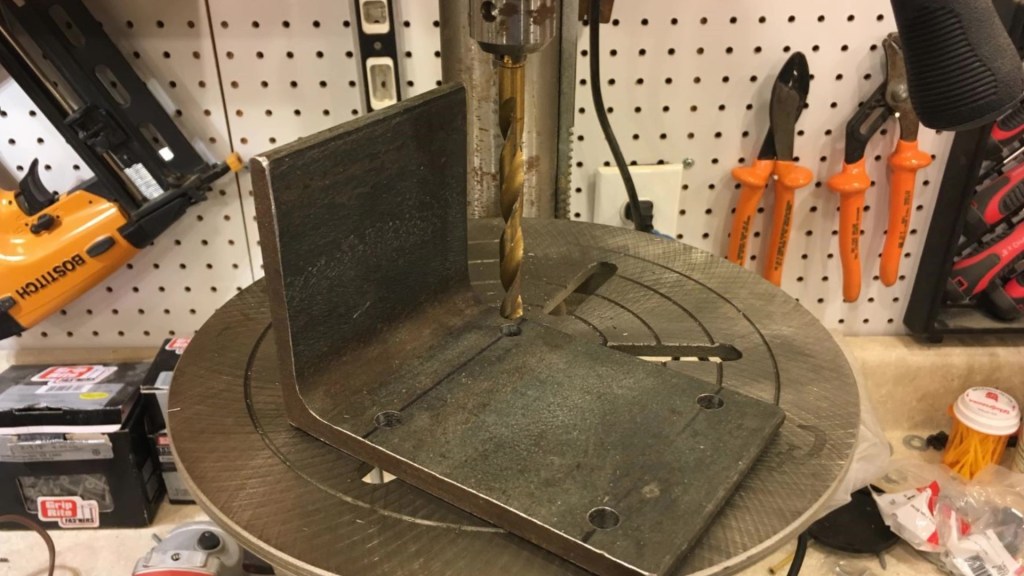

I settled on using a piece of angle iron, cut from an L-beam.  Now this happens to be 3/8ā€ thick but it certainly doesn’t need to be.  It just what I could get easily and for free.  This will become a versatile platform for other accessories.  In this picture, I have just finished drilling the holes for the u-bolts to hold it to the ROPS.

Speaking of which, I used 3/8ā€ u-bolts 3ā€ wide and 4ā€ long.

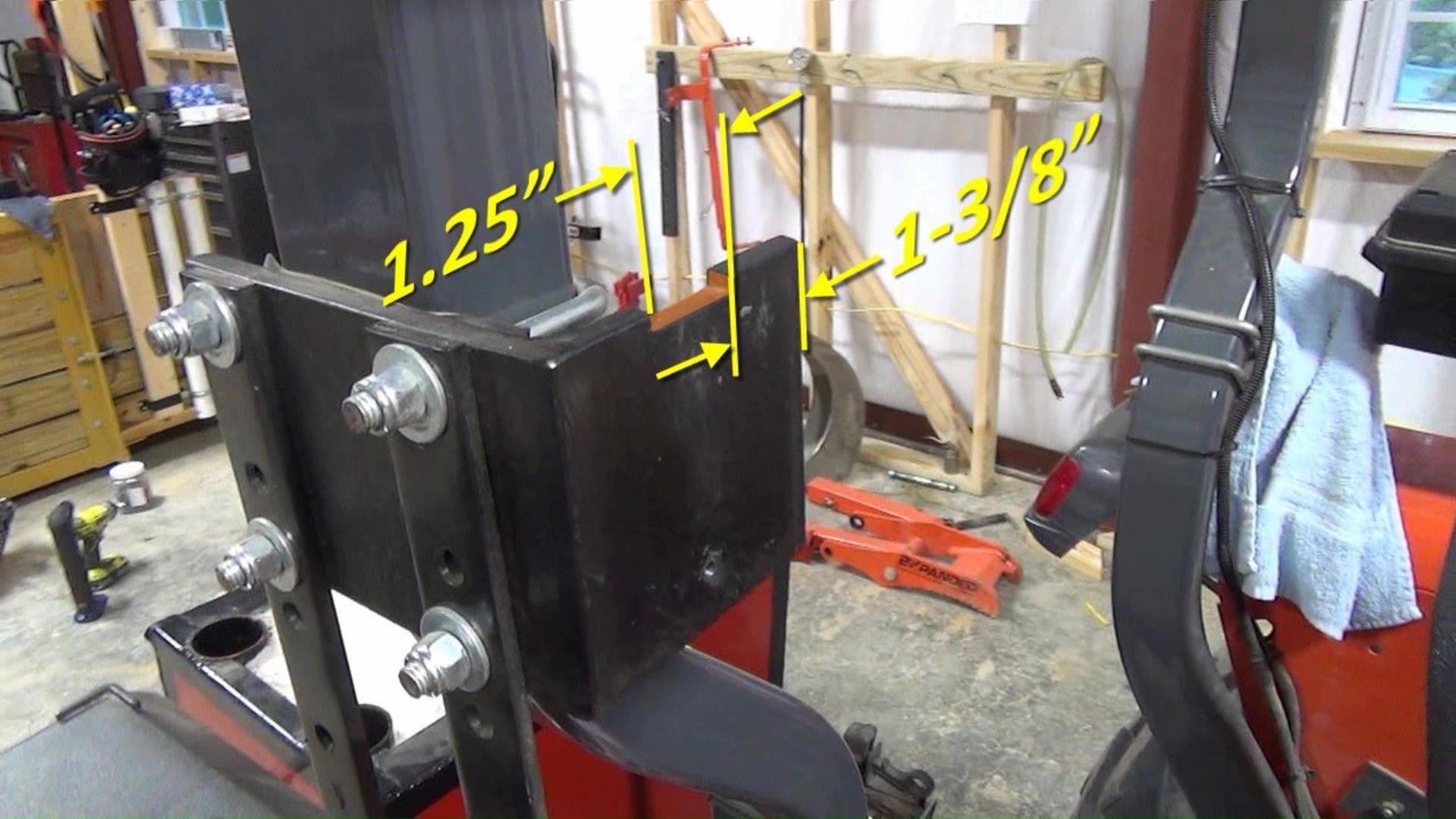

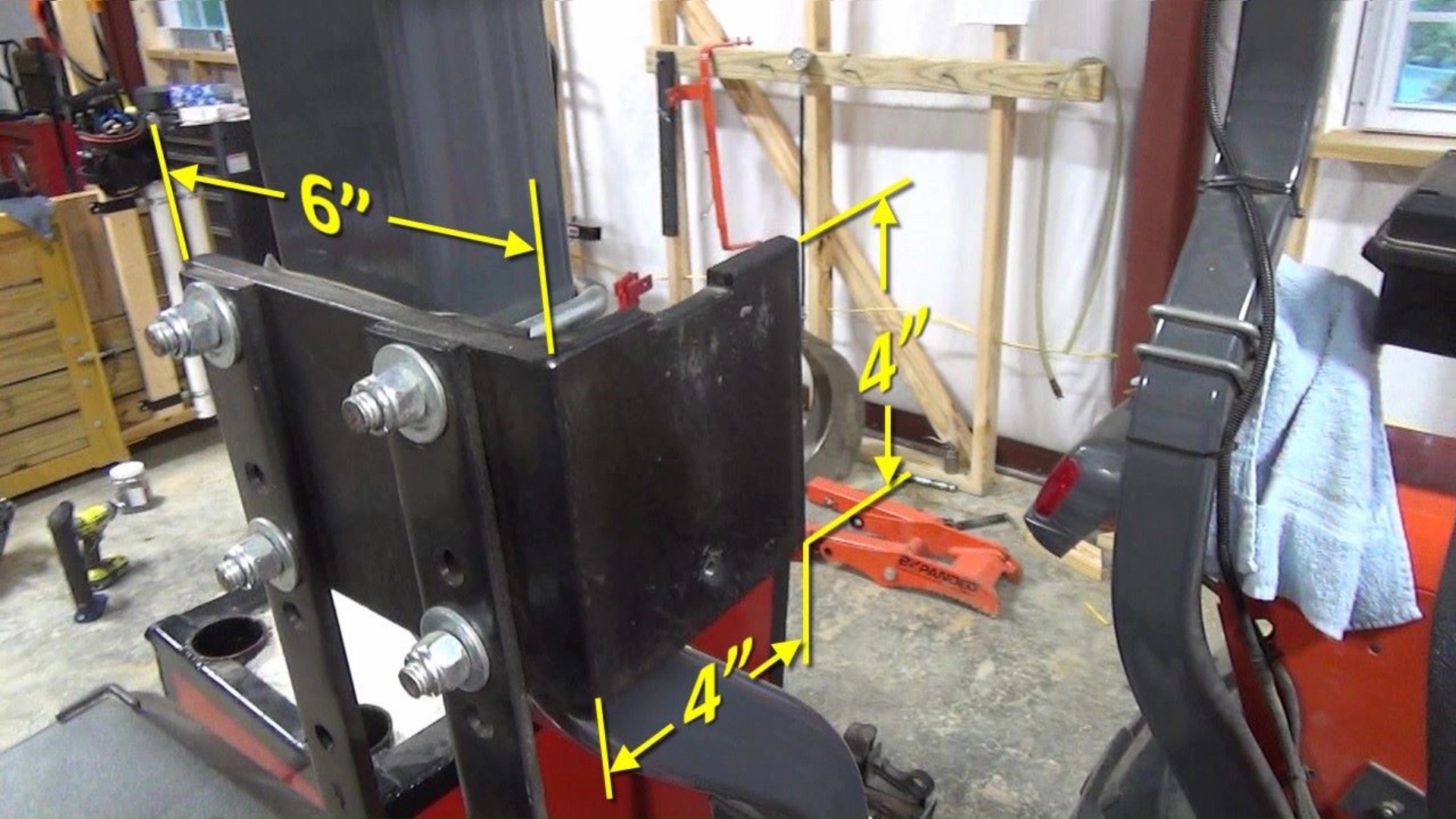

The angle iron is mounted to the left side of the ROPS, just above the bend. It is 4ā€ tall and the front face is 4ā€ wide. And it is 6ā€ long.  I cut a notch in the top of the face 1 and a quarter inches wide and 1-3/8ā€ form the edge which centers it.  The notch is 3/16ā€ deep.

I drilled and tapped a 10-32 hole, 2ā€ from the edge and Ā¾ā€ from the bottom. I also drilled 4 3/8ā€ holes for the u-bolts, spaced as shown.  Oh, and I primed and painted it black.

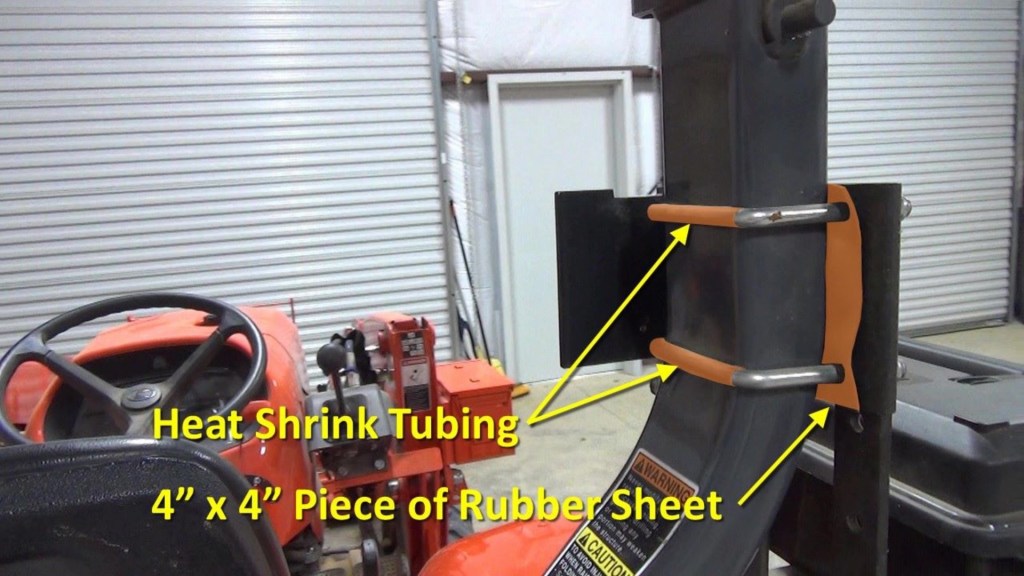

To protect the ROPS finish, I cut a 4 by 4 inch piece of rubber sheet from a pond liner scrap to go between the angle iron and the ROPS.  I also put pieces of heat shrink tubing on the u-bolts for the same reason.

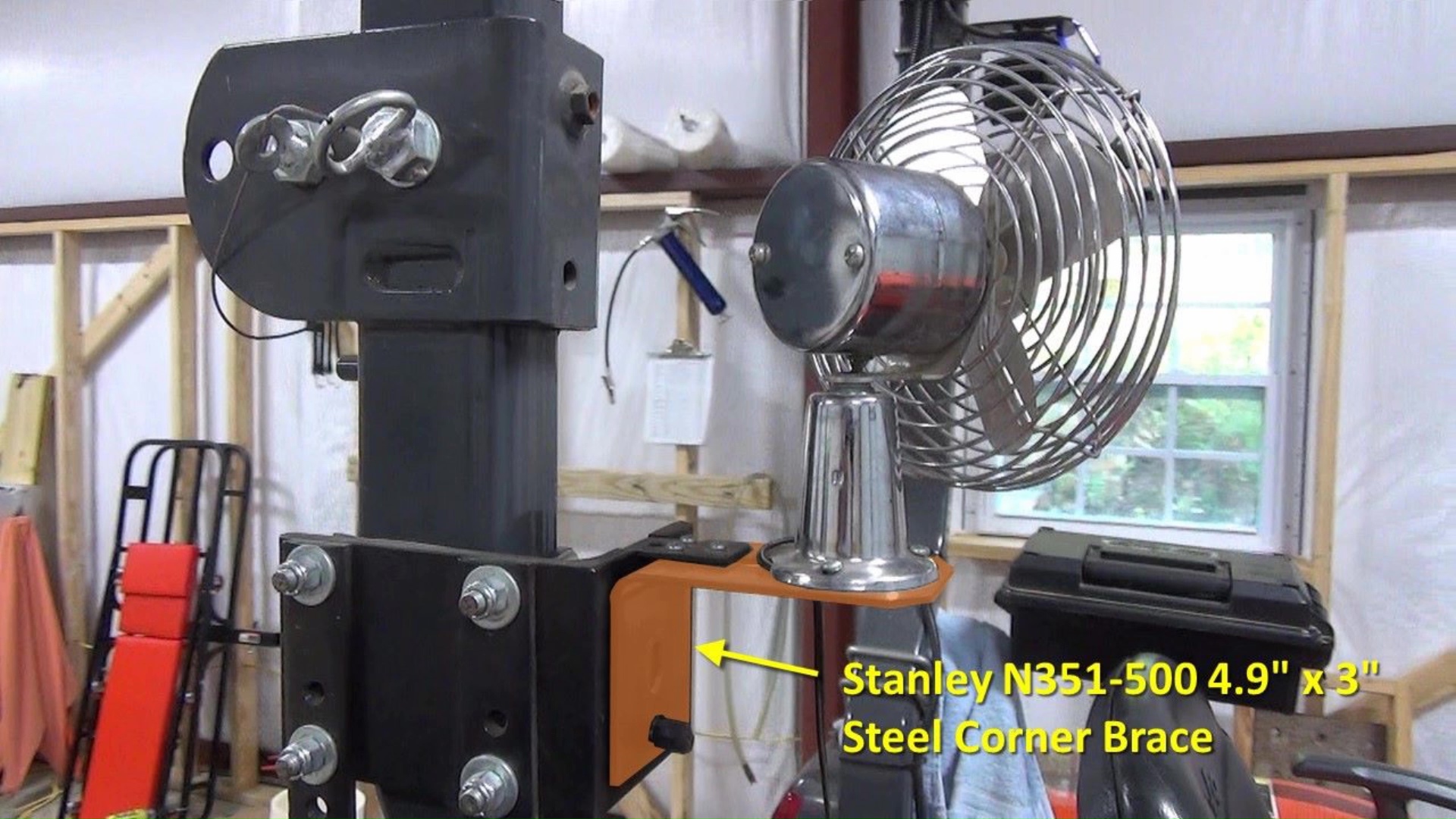

The fan is mounted to a 4.9ā€ x 3ā€ steel corner brace made be Stanley – same as the ones I used on the side LED lights.  Only I cut about an inch off the bottom, but that’s optional.

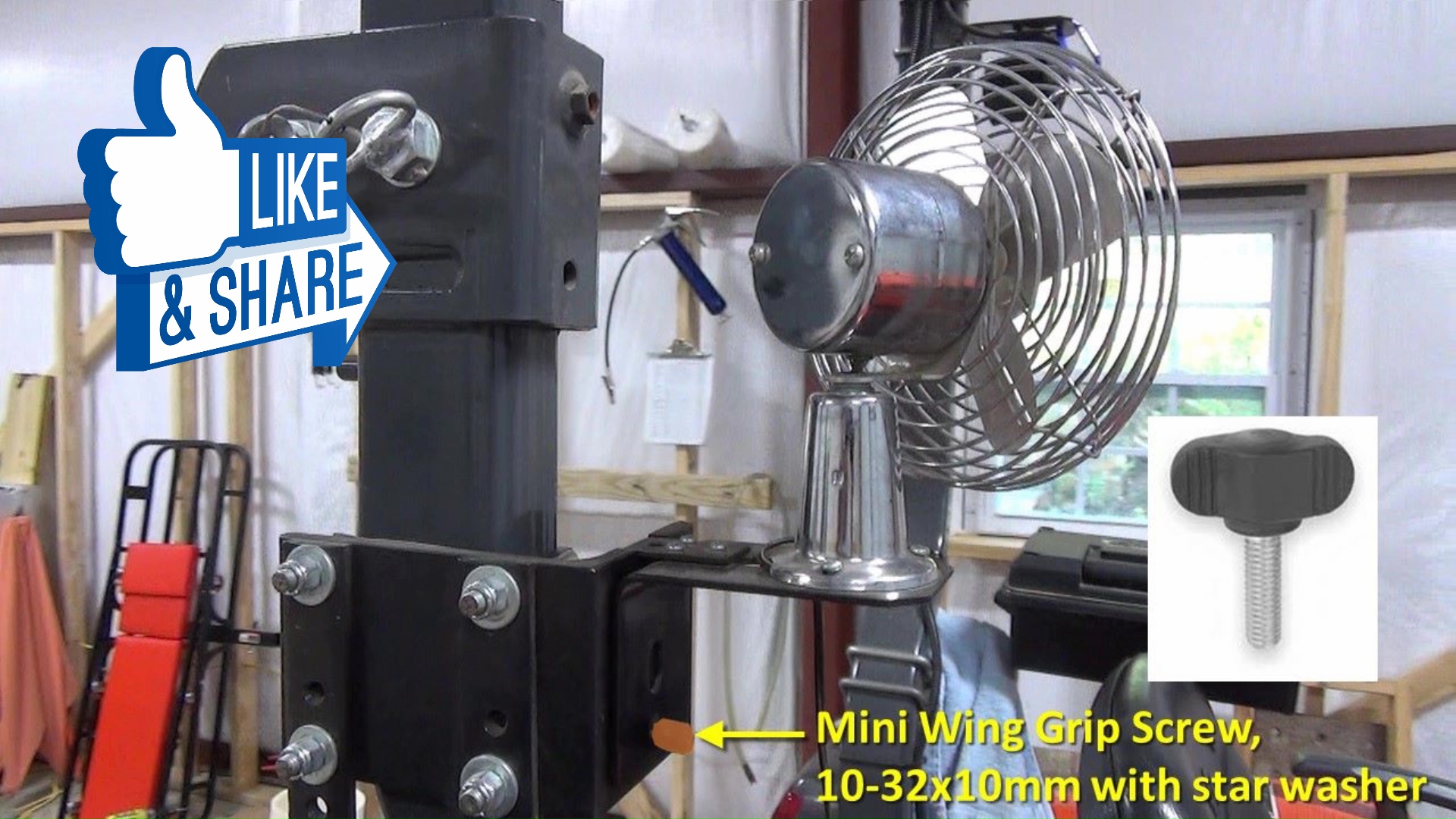

I used a 10-32 wing grip screw which screws into the 10-32 threaded hole in the angle iron. I also added a #10 star lock washer to keep it from come loose.

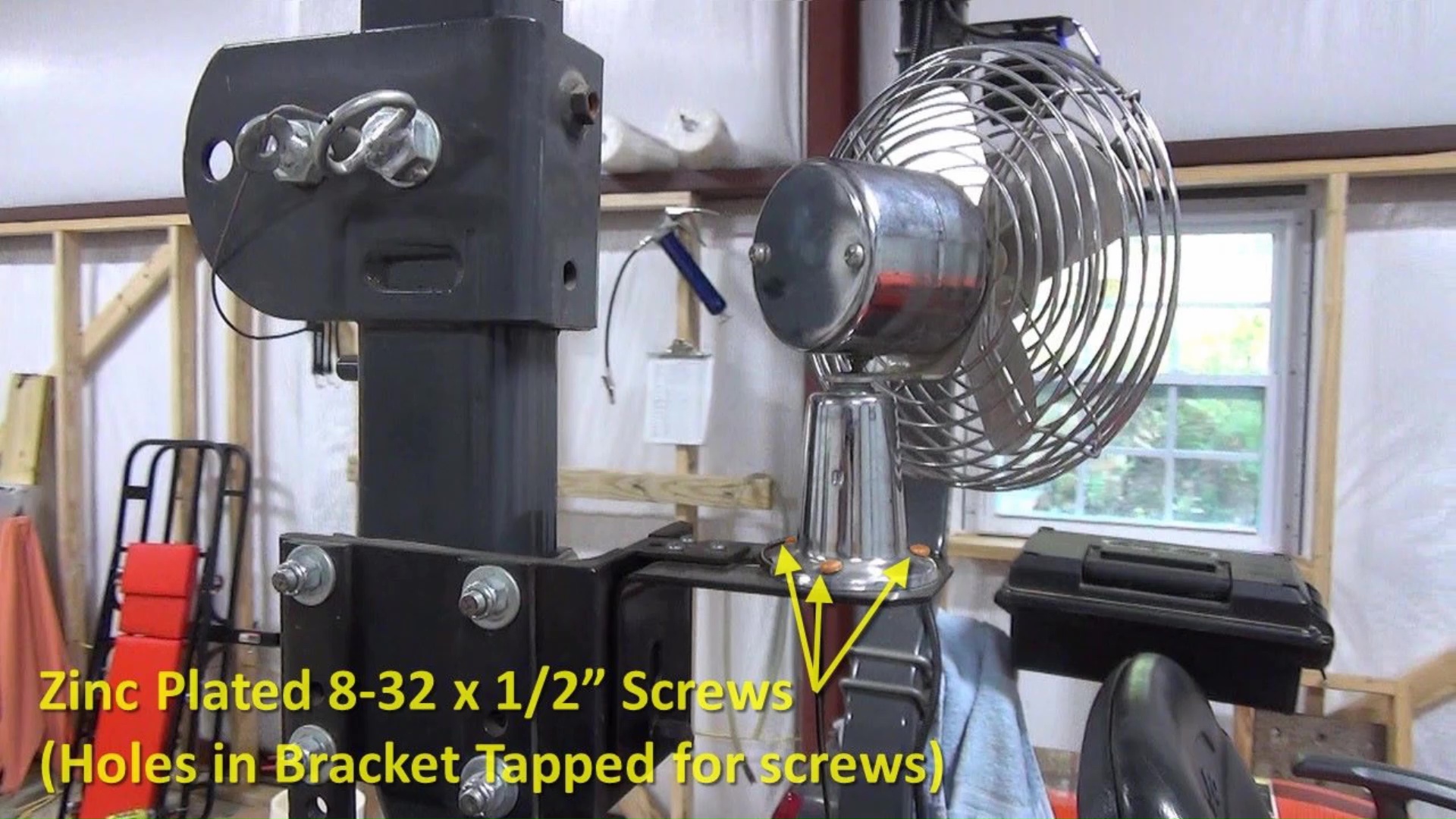

The fan is mounted to the corner brace with 3 half-inch long 8-32 screws.  The holes in the brace are tapped for 8-32.

The hook plate is made from a piece of 1 and 1/8ā€ by 1/8ā€ think steel flat bar I had on hand, but you could also make one by cutting up a 1ā€ wide corner bracket.

The hook plate is 2ā€ long with a half inch 90 degree turn down and it is spaced with a 3/8ā€ gap from the corner brace to hook over the angle iron in the notch.

Finally, the hook plate is screwed to the top of the corner brace with three 3/8ā€ long 8-32 screws and #8 star lock washers.  The holes in the corner brace are tapped for 8-32.

The hole for the wing grip screw is 1.5ā€ from the edge of the corner brace, which centers it, and 3ā€ from the top of the corner brace.

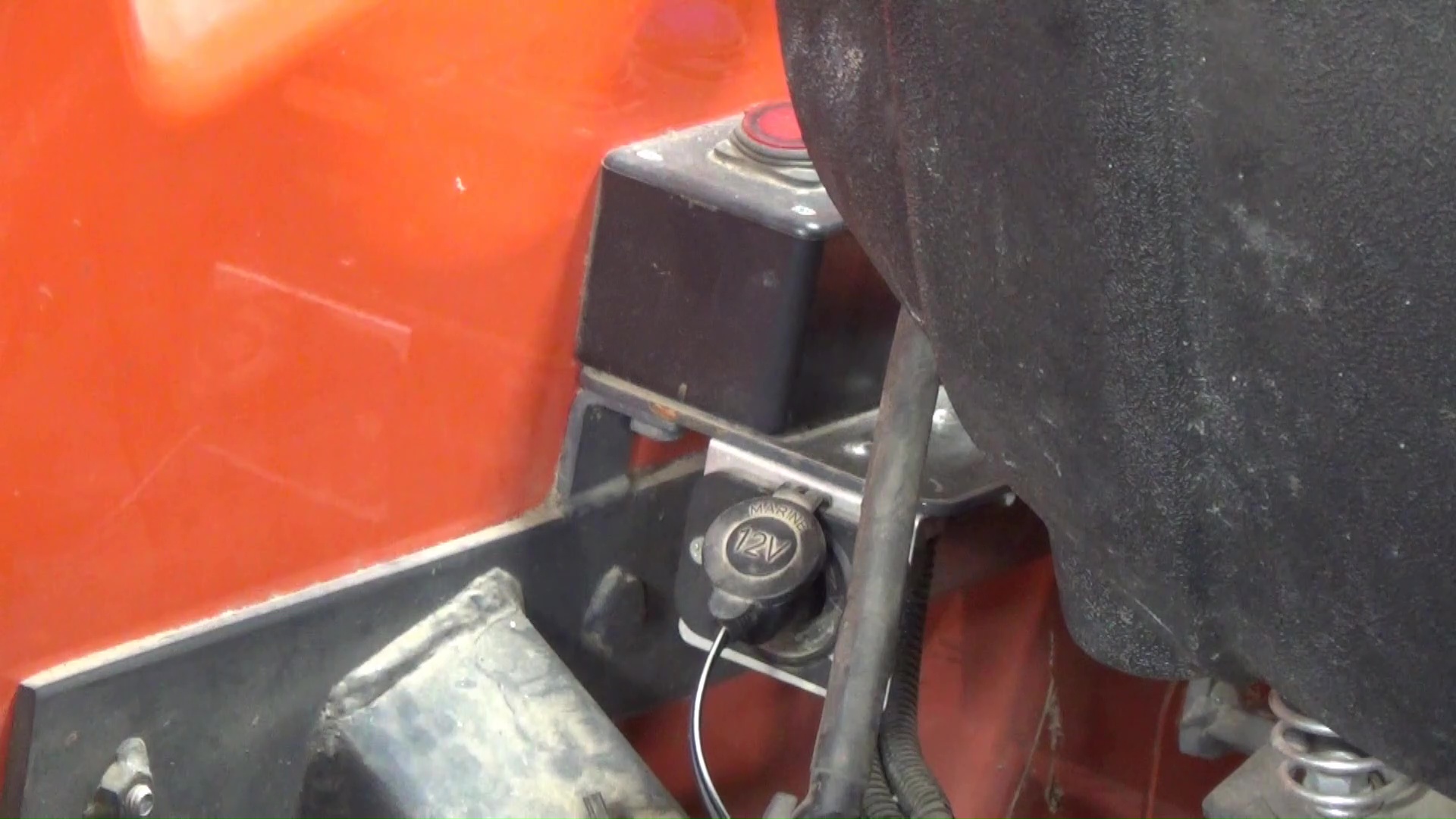

The fan plugs into the 12-volt outlet I installed when I added the auxiliary fuse box.

When not in use, I remove the fan and hang on the wall unit warm weather returns.
